5개 laser와 73개의 detector를 갖춘 Opteon Spectral Flowcytometry system
작성자 관리자
날짜 2024-05-10 10:55:37
조회수 152
NovoCyte Opteon Spectral Flow Cytometer Systems 3-5 Lasers
최대 5개의 레이저 구성과 73개의 detector를 갖춘 high performance 유세포분석기 시스템을 소개드립니다. 기존 filter 방식에서 탈피하여 다양한 파장에서의 신호를 스캔합니다. 최적의 신호를 검출하여 기존보다 더욱 선명하고 약한 신호까지 검출이 가능합니다.
The NovoCyte Opteon spectral flow cytometer is a new, cutting-edge spectral flow cytometry solution designed to revolutionize your cell analysis research.
The NovoCyte Opteon boasts up to 5 lasers and 73 detectors, a proprietary optics design, and advanced electronics, enabling it to deliver data with high resolution and sensitivity. The wide dynamic range for both fluorescence detection and particle size measurement helps streamline experimental workflows. On-board temperature control, electronics, and fluidics sensor circuitry provide real-time instrument status monitoring and ensure consistent, reliable data acquisition in different ambient environments.
Additionally, the intuitive and industry-leading NovoExpress software has been further advanced, providing an exceptional data acquisition, analysis, and reporting user experience.
특징
Up to 5 lasers, 73 high-quality detectors
Demonstrated panel of 45 colors
Data with high sensitivity and high resolution due to an innovative optical design
Dual-laser small particle detection with wide dynamic range
High instrument reliability with on-board temperature control and fluidics circuitry
Powerful and intuitive NovoExpress software
Versatile autosampler compatible with 40-tube rack and 384/96/48/24 well plates
Robotic automation ready

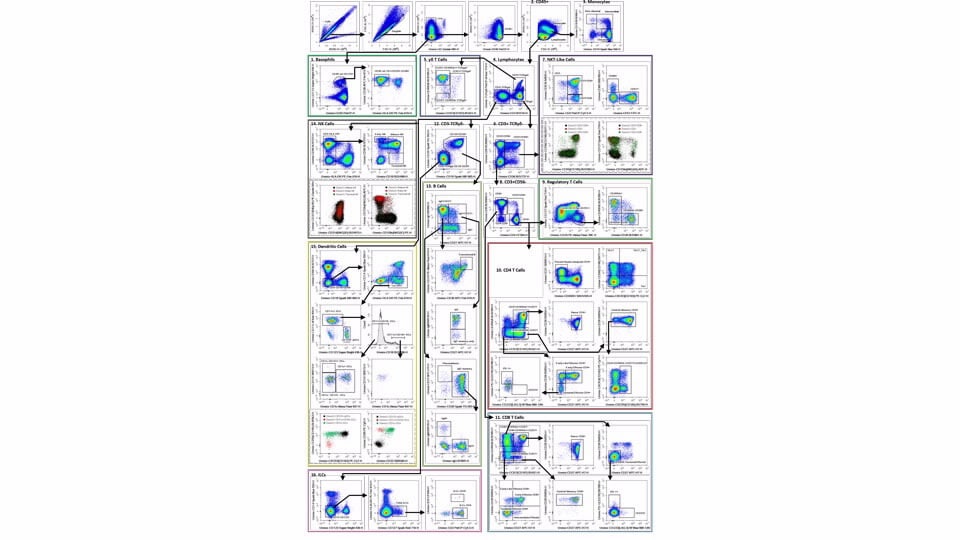

Every Fluorochrome Tells a Story
Armed with up to 5 lasers, 73 detectors, and a demonstrated 45-color panel, the NovoCyte Opteon is your gateway to multidimensional cell analysis. Expand beyond traditional flow cytometry panels to reveal more about your samples.
Elevate Your Data
Autofluorescence subtraction allows you to achieve improved resolution of specific cell populations of interest. Apply autofluorescence subtraction to individual cell populations in a mixed cell sample, allowing for customized resolution and improved sensitivity for your analysis.
Smart Technology, Simple Solutions

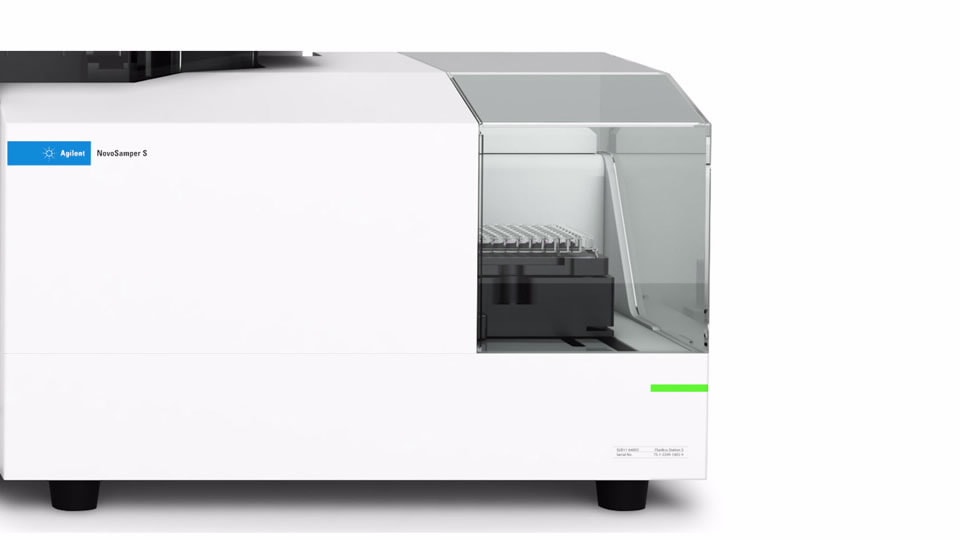

The intuitive and industry-leading NovoExpress software sets a new standard for an exceptional user experience in flow data acquisition, analysis, and reporting. With the NovoSampler S, you’ll have true walk-away functionality that is ready for robotic automation that seamlessly integrates into your laboratory instrument ecosystem.
Immunophenotyping
There is a significant need for methodologies and instruments that provide high-throughput, in-depth analyses of the immune system at the single-cell level. Contrary to conventional cytometry, which is limited to as many fluorescence parameters as there are detectors, spectral cytometry is able to capture the full fluorescence spectrum for every marker across all laser lines, allowing for more parameters in a single experiment.
Small Particle Detection
The NovoCyte Opteon FSC/SSC detection optics and signal processing electronics have been optimized with dual 488 nm-SSC and 405 nm-SSC to resolve particles as small as 80 nm without adjusting settings to view larger cells in the same sample. With this, high-resolution platelets, bacteria, and various sub-micron particles can be readily identified and analyzed alongside your cell subsets.

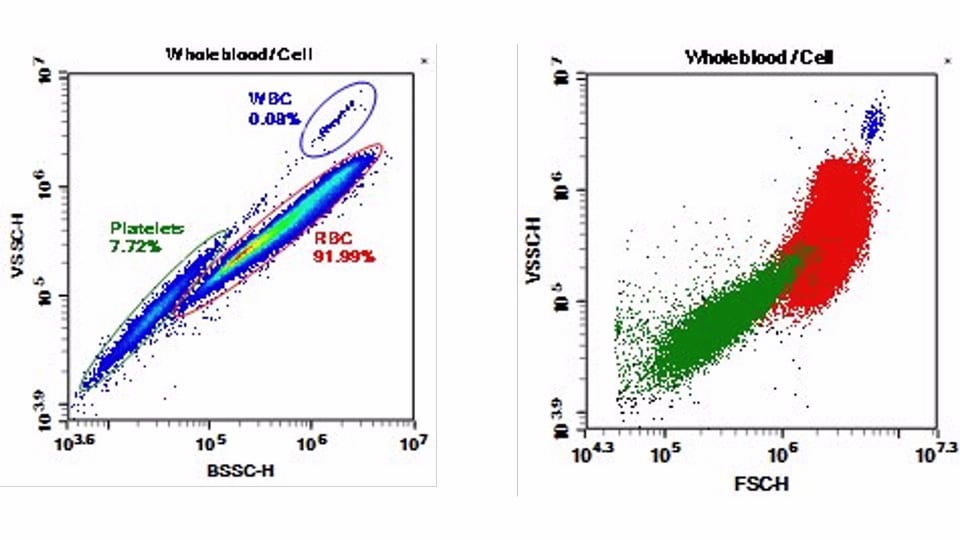

Dual SSC to Separate RBCs from WBCs
The optimized dual 488 nm-SSC and 405 nm-SSC on the NovoCyte Opteon can be used to separate red blood cells (RBCs) from white blood cells (WBCs) and platelets without the need for any RBC lysis treatment.
자료
주요 참고문헌Agilent NovoCyte Opteon Spectral Flow Cytometer Specifications
Specification sheet for the Agilent NovoCyte Opteon spectral flow cytometer. Details technical specifications.
In-Depth Characterization of the Major Leukocyte Cell Subsets in Human Peripheral Mononuclear Cells
A 45-color spectral flow cytometry panel was designed for the Agilent NovoCyte Opteon spectral flow cytometer to analyze the distribution of immune cells.
비디오
NovoCyte Opteon Spectral Flow Cytometer Video
- 00:03:53
